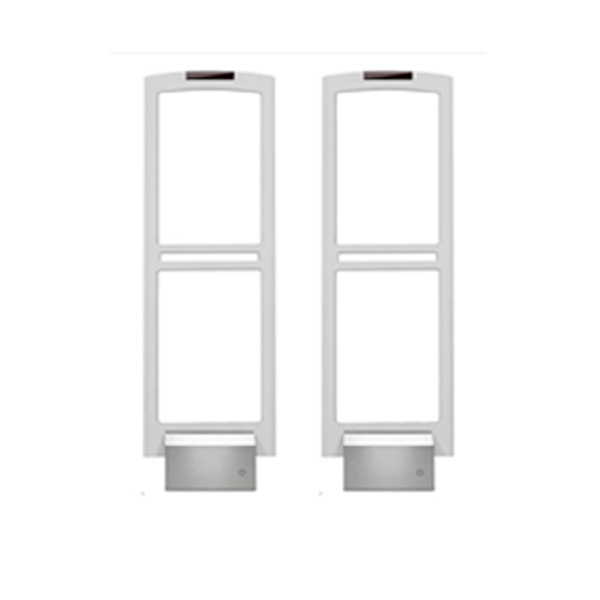

Sensometic EAS Antennas 4425X, Acousto-Magnetic, Anti - Theft Gates
Sensometic EAS Antennas 4425X, Acousto-Magnetic, Anti - Theft Gates

Sensometic EAS Antennas 4425X, Acousto-Magnetic, Anti - Theft Gates

0 out of 5 | 0 Reviews | Write a Review

Product Code: 100 Brand: Sensomatic

Inclusive of all Taxes

Qty.

Product Enquiry

Add to Wishlist Refer to Friend

Description

Technical specifications

  • Central Frequency  : 58KHz
  • TX Frequency Scope  : 58KHz±500Hz
  • RX Frequency Scope  : 57.1KHz－59.3KHz
  • Power Consumption   : 40W(normal) / 60W(max.)
  • Power Fuse :  2A
  • Current (max.) :  38A
  • Input Voltage  : 110~120VAC / 220~240V AC (Switchable)@50/60Hz
  • Alarm Audio Level 100dB max.

Mechanical Specifications

  • Height*Width*Thickness (w/o Base) :  155*50*2.5cm
  • Thickness at Base  :  13cm
  • Net Weight Primary  : 7.3kg, Secondary: 6.4kg

Environmental requirements

  • Temperature   : 0-50℃
  • Relative Humidity  :   0-90% RH, non-condensing


Detection Performance

Detection Performance  Label(Standard) Hard Tag
Detection Range on Both Sides of One Pedestal       1.2m   1.5m
Effective Detection Distance Between Two Pedestals   2.4m     3.0m

Product Codes

Model of Antenna   Remark Primary Antenna Secondary Antenna
4425XN   w/o Acrylic Panel 4425XN-M  4425XN-S
4425XP With one 2mm acrylic panel
on each side		 4425XP-M

4425XP-S
44425XA With one 2mm and one 1mm
acrylic panels on each side for
holding poster paper		 4425XA-M 4425XA-S
